प्रश्न
Construct a rectangle PQRS, when its Area = 33.8cm2 and breadth = 6.5cm
उत्तर
Since area of rectangle = 33.8 cm2
And, breadth = 6.5 cm
Length = Area ÷ Breadth = 33.8 ÷ 6.5 = 5.2 cm

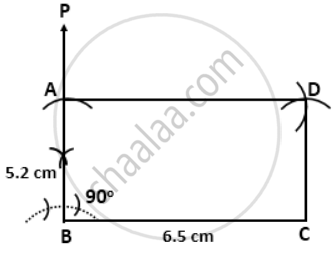

Steps of construction:
1. Draw BC = 6.5 cm
2. Through B, draw BP such that ∠B = 90°
3. From BP, cut BA = 5.2 cm
4. With A and C as centres and radii 6.5 cm and 5.2 cm respectively, draw arcs cutting each other at D.
5. Join AD and CD.
Thus, ABCD is the required triangle.
