प्रश्न
Draw an angle of measure 45° and bisect it.
उत्तर

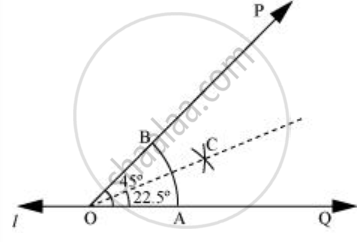

The below given steps will be followed to construct an angle of 45º and its bisector.
- ∠POQ of 45º measure can be formed on a line l by using the protractor.
- Draw an arc of a convenient radius, while taking point O as centre. Let it intersect both rays of angle 45º at point A and B.
- Taking A and B as centres, draw arcs of radius more than `1/2`AB in the interior of angle of 45º. Let those intersect each other at C. Join OC.
OC is the required bisector of 45º angle.
