प्रश्न
Hi-Standard Tech Traj.ning Ltd. is a Mumbai based organization which is expanding its office set-up to Chennai. At Chennai office compound, they are planning to have 3 different blocks for Admin, Training and Accounts related activities. Each block has a number of computers, which are required to be connected in a network for communication, data and resource sharing.
As a network consultant, you have to suggest the best network related solutions for them for issues/problems raised by them in (i) to (iv), as per the distances between various blocks/locations and other given parameters.

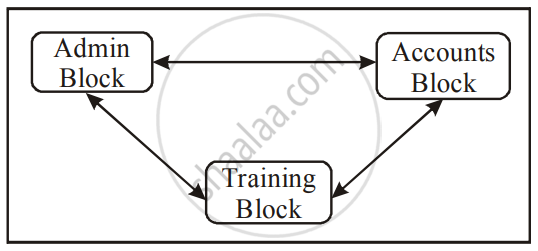

Shortest differences between various blocks/locations:
| Admin Block to Accounts Block | 300 Metres |
| Accounts Block to Training Block | 150 Metres |
| Admin Block to Training Block | 200 Metres |
| MUMBAI Head Office to CHENNAI Office | 1300 Km |
The number of computers installed at various blocks is as follows:
| Training Block | 150 |
| Accounts Block | 30 |
| Admin Block | 40 |
1) Suggest the most appropriate block/location to house the SERVER in the CHENNAI office (out of the 3 blocks) to get the best and effective connectivity. Justify your answer.
2) Suggest the best-wired medium and draw the cable layout (Block to Block) to efficiently connect various blocks within the CHENNAI office compound.
3) Suggest a device/software and its placement that would provide data security for the entire network of the CHENNAI office.
4) Suggest a device and the protocol that shall be needed to provide wireless Internet access to all smartphone/laptop users in the CHENNAI office
उत्तर
1) Training Block
2) The best-wired medium is Fibre optic cable
3) Device - Hard Disk Encryptor
Software - Data Masking
4) IEEE 802.11 and Wi-Fi router
