प्रश्न
An AND gate can be prepared by repetitive use of
(a) NOT gate
(b) OR gate
(c) NAND gate
(d) NOR gate.
उत्तर
(c) NAND gate
(d) NOR gate
APPEARS IN
संबंधित प्रश्न
The following figure shows the input waveforms (A, B) and the output waveform (Y) of a gate. Identify the gate, write its truth table and draw its logic symbol.

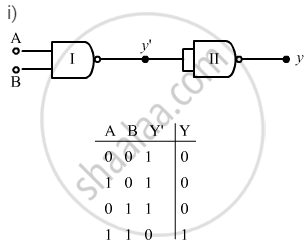

Write the truth table for a NAND gate connected as given in the following figure.
Hence identify the exact logic operation carried out by this circuit

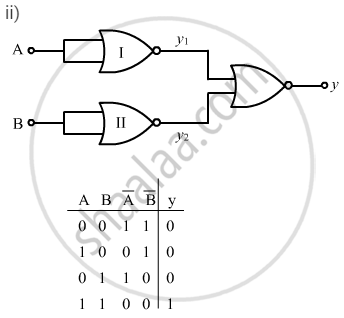

Write the truth table for the circuits given in following figure consisting of NOR gates only. Identify the logic operations (OR, AND, NOT) performed by the two circuits.
(a)
(b)
Draw the schematic symbols for AND, OR, NOT and NAND gate
Give the truth table and circuit symbol for NAND gate
The output of an OR gate is connected to both the inputs of a NAND gate Draw the logic circuit of this combinaion of getes and write its truth table.
Let \[X = A \overline{ BC} + B\overline{ CA} + C\overline{AB } .\] Evaluate X for A = 1, B = 0, C = 1.
Let \[X = A \overline{ BC} + B\overline{ CA} + C\overline{AB } .\] Evaluate X for A = B = C = 1.
The amplification factor of a triode operating in the linear region depends strongly on ____________ .
(i) Write the truth tables of the logic gates marked P and Q in the given circuit.
(ii) Write the truth table for the circuit.
Draw a diagram to show how NAND gates can be combined to obtain an OR gate. (Truth table is not, required)
Useful Constants and Relations:
| 1. | Charge of a proton | (e) | =1.6 × 10-19C |
| 2. | Planck's constant | (h) | = 6·6 × 10-34 Js |
| 3. | Mass of an electron | (m) | = 9·1× 10-31 kg |
| 4. | Permittivity of vacuum | (∈0) | =8 · 85 × 10-12 Fm-1 |
| 5. | `(1/(4pi∈_0))` | =9 ×109 mF-1 | |
| 6. | Permeability of vacuum | (μ0) | = 4π × 10-7 Hm-1 |
| 7. | `((mu_0)/(4pi))` | =1 × 10-7 Hm-1 | |
| 8. | Speed of light in vacuum | (c) | = 3× 108 ms-1 |
| 9. | Unified atomic mass unit | (u) |
= 931 MeV |
| 10. | Electron volt | (leV) | = 1.6 × 10-19 J |
With the help of a diagram, show how you can use several NAND gates to obtain an OR gate.
Useful Constants and Relations :
| 1. Speed of Light in Vacuum | (c) = 3.00 x 108 m/s |
| 2. Charge of a proton | (e) = 1.60 x 10-19C |
| 3. Planck's Constant | (h) = 6.6 x 10-34 Js |
| 4. Permeability of vacuum | (μ0) = 4π x 10-7 Hm-1 |
| 5. Electron Volt | (1eV ) = 1.6 x 10 |
| 6. Unified Atomic Mass Unit | (1u) = 931 MeV |
| (π) = 3.14 | |
| ( ln 2 ) = 0.693 |
NAND and NOR gates are called universal gates primarily because they ______.
Truth table for the given circuit (Figure) is ______.
In the logic circuit shown in the figure, if input A and B are 0 to 1 respectively, the output at Y would be 'x'. The value of x is ______.
Identify the logic operation carried out by the given circuit:
The given figure shows the waveforms for two inputs A and B and that for the output Y of a logic circuit. The logic circuit is ______.
A logic gate circuit has two inputs A and B and output Y. The voltage waveforms of A, B and Y are shown below.
The logic gate circuit is ______.
Which of the following gives a reversible operation?
