प्रश्न
Construct a quadrilateral ABCD in which
AB = 7.2cm, BC = 5.8cm, CD = 6.3cm, AD = 4.3cm and ∠A = 75°
उत्तर
AB = 7.2cm, BC = 5.8cm, CD = 6.3cm, AD = 4.3cm and ∠A = 75°

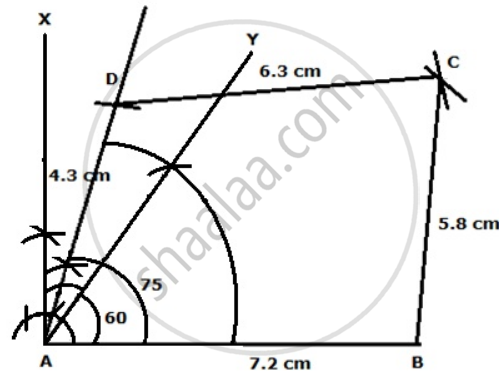

Steps of Construction:
1) Draw a line segment AB = 7.2cm
2) With A as centre draw rays X and Y to make angle 90° and 60° with AB. Then bisect the angle between them to make an angle of 75° with AB.
3) With A as centre and radius 4.3cm cut an arc on line segment making 75° angles wit hAB and mark it as D.
4) With D and B as centres and radii of 6.3 and 5.8cm respectively, draw arcs cutting each other at C.
5) Join DC and BC.
6) ABCD is the required quadrilateral.
APPEARS IN
संबंधित प्रश्न
Construct the following quadrilateral of given measures.
Construct ☐ DEFG such that l(DE) = 4.5 cm, l(EF) = 6.5 cm, l(DG) = 5.5 cm, l(DF) = 7.2 cm, l(EG) = 7.8 cm.
Construct a quadrilateral ABCD, when:
AB = 7.2 cm, BC = 5.8 cm, CD = 6.3 cm, AD = 4.3 cm and angle A = 75°.
Construct a quadrilateral ABCD, when:
∠ A = 90o, AB = 4.6 cm, BD = 6.4 cm, AC = 6.0 cm and CD = 4.2 cm.
Construct a quadrilateral ABCD, when:
AB = 3.8 cm, AC = 4.8 cm, AD = 2.8 cm, angle A = 105° and angle B = 60°.
Construct a quadrilateral ABCD, when:
AB = 6.3 cm, BC = CD = 4.2 cm and ∠ABC = ∠BCD = 90°.
Using ruler and compasses only, construct the quadrilateral ABCD, having given AB = 5 cm, BC = 2.5 cm, CD = 6 cm. angle BAD = 90o and the diagonal AC = 5.5 cm.
Construct a quadrilateral ABCD; if:
AB = 5 cm, BC = 6.5 cm, CD =4.8 cm, ∠B = 75° and ∠C = 120°.
Construct a quadrilateral ABCD in which ; ∠A = 120°, ∠B = 60°, AB = 4 cm, BC = 4.5 cm and CD = 5 cm.
Construct a quadrilateral ABCD in which
AB = 4.6cm, BD = 5cm, AC = 6cm, CD = 4.2cm and ∠A = 90°
Construct a quadrilateral ABCD in which
AD = AB = 5cm, BC = 3.8cm, CD = 3.5cm, and ∠BAD = 45°
