प्रश्न
Construct the following quadrilaterals.
Quadrilateral GOLD
OL = 7.5 cm
GL = 6 cm
GD = 6 cm
LD = 5 cm
OD = 10 cm
उत्तर

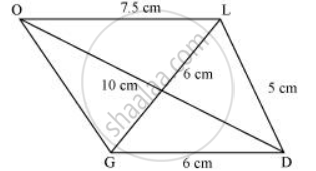

A rough sketch of this quadrilateral can be drawn as follows.
1) Δ GDL can be constructed by using the given measurements as follows.

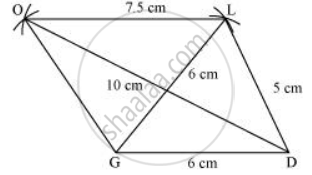

2) Vertex O is 10 cm away from vertex D and 7.5 cm away from vertex L. Therefore, while taking D and L as centres, draw arcs of 10 cm radius and 7.5 cm radius respectively. These will intersect each other at point O.
3) Join O to G and L
GOLD is the required quadrilateral.
APPEARS IN
संबंधित प्रश्न
Construct the following quadrilaterals.
Quadrilateral LIFT
LI = 4 cm
IF = 3 cm
TL = 2.5 cm
LF = 4.5 cm
IT = 4 cm
Construct the following quadrilaterals.
Rhombus BEND
BN = 5.6 cm
DE = 6.5 cm
Construct a quadrilateral ABCD such that AB = BC = 5.5 cm, CD = 4 cm, DA = 6.3 cm and AC = 9.4 cm. Measure BD.
Construct a quadrilateral XYZW in which XY = 5 cm, YZ = 6 cm, ZW = 7 cm, WX = 3 cm and XZ = 9 cm.
Construct a rhombus with side 6 cm and one diagonal 8 cm. Measure the other diagonal.
Construct a quadrilateral ABCD given AD = 3.5 cm, BC = 2.5 cm, CD = 4.1 cm, AC = 7.3 cm and BD = 3.2 cm.
Construct a quadrilateral ABCD given AD = 5 cm, AB = 5.5 cm, BC = 2.5 cm, AC = 7.1 cm and BD = 8 cm.
A quadrilateral has two diagonals.
A quadrilateral can be drawn if three sides and two diagonals are given.
Is it possible to construct a quadrilateral ABCD in which AB = 3 cm, BC = 4 cm, CD = 5.4 cm, DA = 5.9 cm and diagonal AC = 8 cm? If not, why?
