प्रश्न

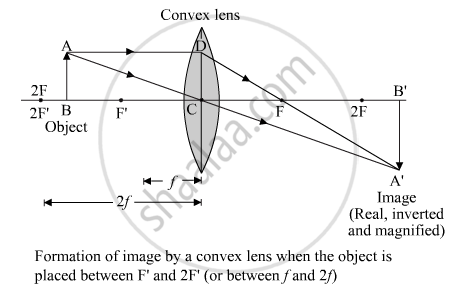

Draw a ray diagram to show the formation of a real magnified image by a convex lens. (In your sketch the position of object and image with respect to the principal focus of lens should be shown clearly).
उत्तर
A convex lens forms a real and magnified image when an object is placed between F and 2F.
