प्रश्न
Xcelencia Edu Services Ltd. is an educational organization. It is planning to set up its India campus at Hyderabad with its head office at Delhi. The Hyderabad campus has 4 main
buildings ADMIN, SCIENCE, BUSINESS and ARTS.
You as a network expert have to suggest the best network related . solutions for their problems raised in (i) to (iv), keeping in mind the distances between the buildings and other given parameters.
Shortest distances between various buildings :
| ADMIN to SCIENCE | 65m |
| ADMIN to BUSINESS | 100m |
| ADMIN to ARTS | 60m |
| SCIENCE to BUSINESS | 75m |
| SCIENCE to ARTS | 60m |
| BUSINESS to ARTS | 50m |
| DELHI Head Office to HYDERABAD Campus | 1600Km |
Number of computers installed at various buildings are as follows :
| ADMIN | 100 |
| SCIENCE | 85 |
| BUSSINESS | 40 |
| ARTS | 12 |
| DELHI Head Office | 20 |
1) Suggest the most appropriate location of the server inside the HYDERABAD campus (out of the 4 buildingakto get the best connectivity for maximum number of computers. Justify your answer
2) Suggest . and draw the cable layout to efficiently connect various buildings within the HYDERABAD campus for connecting the computers.
3) Which hardware device will you suggest to be procured by the company to be installed to protect and control the internet uses within the campus?
4) Which of the following will you suggest to establish the online face-to-face communication between the people in the Admin Office of HYDERABAD campus and · DELHI Head Office ?
- Text Chat
- Video Conferencing
- Cable TV
उत्तर
1) ADMIN (due to maximum number of computers)

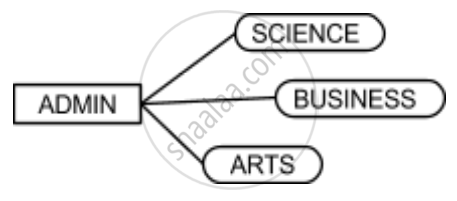

2)
3) Firewall Or Router
4) Video Conferencing
APPEARS IN
संबंधित प्रश्न
illustrate the layout for connecting 5 computers in a star topology of Networks
In ______ networking topology, each node is connected to two other devices.
School lab has around 40 computers. Suggest the most suitable type of network topology he should use in order to maximise speed and make each computer indepenent of network breakdowns.
Define the term topology.
Meticulous EduServe is an educational organization. It is planning to setup its India campus at Chennai with its head office at Delhi. The Chennai campus has 4 main buildings - ADMIN, ENGINEERING, BUSINESS and MEDIA.
Block to Block distances (in Mtrs.)
| From | To | Distance |
| ADMIN | ENGINEERING | 55 m |
| ADMIN | BUSINESS | 90 m |
| ADMIN | MEDIA | 50 m |
| ENGINEERING | BUSINESS | 55 m |
| ENGINEERING | MEDIA | 50 m |
| BUSINESS | MEDIA | 45 m |
| DELHI HEAD OFFICE | CHENNAI CAMPUS | 2175 km |
Number of computers in each of the blocks/Center is as follows:
| ADMIN | 110 |
| ENGINEERING | 75 |
| BUSINESS | 40 |
| MEDIA | 12 |
| DELHI HEAD | 20 |
- Suggest and draw the cable layout to efficiently connect various blocks of buildings within the CHENNAI campus for connecting the digital devices.
- Which network device will be used to connect computers in each block to form a local area network?
- Which block, in Chennai Campus should be made the server? Justify your answer.
- Which fast and very effective wireless transmission medium should preferably be used to connect the head office at DELHI with the campus in CHENNAI?
- Suggest a device/software to be installed in the CHENNAI Campus to take care of data security.
