प्रश्न

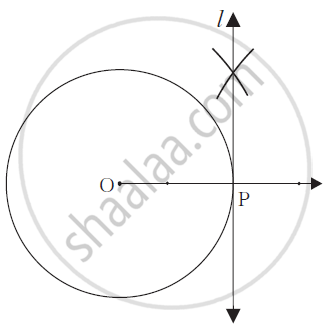

Complete the following activity to draw a tangent to a circle at a point on the circle.
Draw a circle of radius 2.2 cm with O as centre.
↓
Take any point P on the circle and draw ray OP.
↓
Draw a perpendicular line to the ray at point P.
↓
Name the perpendilcular line as l
l is the tangent at point P.
उत्तर
APPEARS IN
संबंधित प्रश्न
Construct a tangent to a circle with centre P and radius 3.2 cm at any point M on it.
Draw a circle of radius 2.7 cm. Draw a tangent to the circle at any point on it.
Draw a circle with radius 3.4 cm. Draw a chord MN of length 5.7 cm in it. construct tangents at point M and N to the circle.
Select the correct alternative for the following question.
The maximum number of tangents that can be drawn to a circle from a point out side it is .............. .
Choose the correct alternative:
Which theorem is used while constructing a tangent to the circle by using center of a circle?
| Draw a circle and take any point P on the circle. Draw ray OP |
| ↓ |
| Draw perpendicular to ray OP from point P |
To draw tangents to the circle from the endpoints of the diameter of the circle.
| Construct a circle with center O. Draw any diameter AB of it |
| ↓ |
| Draw ray OA and ray OB |
| ↓ |
| Construct perpendicular to ray OA from point A |
| ↓ |
| Construct perpendicular to Ray OB from point B |
Draw a circle of radius 3.4 cm. Draw a chord MN 5.7 cm long in a circle. Draw a tangent to the circle from point M and point N
Draw a circle of radius 4.2 cm. Draw a tangent to the circle at point P on the circle without using the center of the circle
Do the following activity to draw tangents to the circle without using the center of the circle.
- Draw a circle with radius 3.5 cm and take any point C on it.
- Draw chord CB and an inscribed angle CAB.
- With the center A and any convenient radius, draw an arc intersecting the sides of angle BAC in points M and N.
- Using the same radius, draw an arc intersecting the chord CB at point R.
- Taking the radius equal to d(MN) and center R, draw an arc intersecting the arc drawn in the previous step. Let D be the point of intersection of these arcs. Draw line CD. Line CD is the required tangent to the circle.
Draw a circle with center O and radius 3.4. Draw a chord MN of length 5.7 cm in a circle. Draw tangents to the circle from point M and N
Draw a circle of radius 4.2 cm. Draw arc PQ measuring 120°. Draw a tangent to the circle from point P and point Q
Draw a circle of radius 3 cm and draw chord XY 5 cm long. Draw the tangent of the circle passing through point X and point Y (without using the center of the circle)
Draw a circle with center O and radius 3 cm. Take the point P and the point Q at a distance of 7 cm from the center of the circle on the opposite side of the circle such that their line of intersection passing through the center of the circle Draw a tangent to the circle from the point P and the point Q
AB = 6 cm, ∠BAQ = 50°. Draw a circle passing through A and B so that AQ is the tangent to the circle
Take point P and Q and draw a circle passing through them. Draw a tangent AB to the circle without using the centre of the circle.
Draw any circle with radius greater than 1.8 cm and less than 3 cm. Draw a chord AB 3.6 cm long in this circle. Tangent to the circle passing through A and B without using the center of the circle
Draw a circle with center O and radius 2.8 cm. Take point P in the exterior of a circle such that tangents PA and PB drawn from point P make an angle ∠APB of measure 70°
Draw a circle of radius 3.2 cm and centre 'O'. Take any point P on it. Draw tangent to the circle through point P using the centre of the circle.
Draw a circle of suitable radius. Take point T on it. Draw a tangent through point T.
