प्रश्न
Draw a circle of radius 3.4 cm. Draw a chord MN 5.7 cm long in a circle. Draw a tangent to the circle from point M and point N
उत्तर
Analysis:
`{:("seg ON" ⊥ "line" l),("seg OM" ⊥ "line m"):}}` ......[Tangent theorem]
The perpendicular to seg ON and seg OM at points N and M respectively will give the required tangents at N and M.

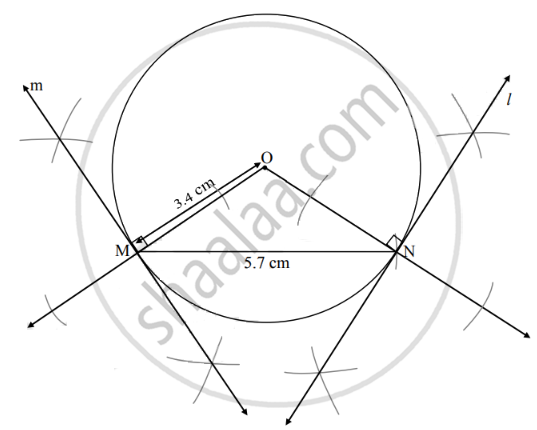

Steps of construction:
- With center O, draw a circle of radius 3.4 cm
- Draw chord MN of length 5.7 cm in the circle.
- Draw rays OM and ON.
- Draw line l ⊥ ray ON at point N.
- Draw line m ⊥ ray OM at point M.
Lines l and m are the required tangents at points M and N to the circle.
