Question
Draw diagram showing the arrangement of the lines of force for a piece of soft iron laid in line with the magnetic field.
Solution

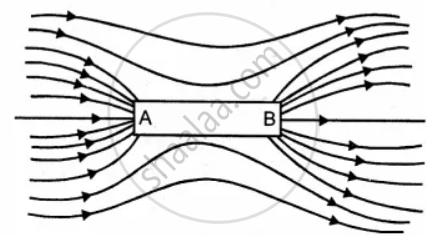

Arrangement of lines of force for a piece of soft iron laid in line with the magnetic field:
AB is a soft iron rod whose end A behaves as south pole and end B behaves a north pole when soft iron rod is placed in a line with magnetic field.
APPEARS IN
RELATED QUESTIONS
Explain why, two magnetic field lines of not intersect each other.
Which of the following statements is incorrect regarding magnetic field lines?
(a) The direction of magnetic field at a point is taken to be the direction in which the north pole a magnetic compass needle points.
(b) Magnetic field lines are closed curves.
(c) If magnetic field lines are parallel and equidistant, they represent zero field strength.
(d) Relative strength of magnetic field is shown by the degree of closeness of the field lines.
A magnetic field exerts no force on:
an electrical charge moving perpendicular to its direction
an unmagnetised iron bar
a stationary electric charge
a magnet
Explain what you understand by magnetic induction. What role does it play in attraction of a piece of iron by a magnet?
What do you understand by the term magnetic field lines?
The intensity of a magnetic field is indicated by the lines of ______.
State any two properties of a magnet.
Magnetic lines of force never ______ each other.
When the conductor is perpendicular to the magnetic field, the force will be the ______, When it is parallel to the magnetic field, the force will be ______.
A student fixes a white sheet of paper on a drawing board. He places a bar magnet in the centre and sprinkles some iron filings uniformly around the bar magnet. Then he taps gently and observes that iron filings arrange themselves in a certain pattern.
- Why do iron filings arrange themselves in a particular pattern?
- Which physical quantity is indicated by the pattern of field lines around the bar magnet?
- State any two properties of magnetic field lines.
