Question
Draw diagram showing the arrangement of the lines of force for two magnets in line, with unlike poles facing one another.
Solution

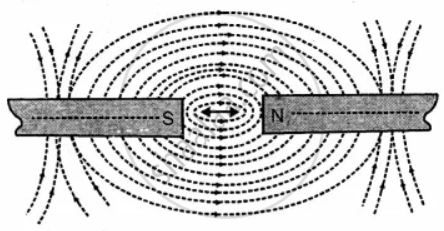

Arrangement of lines of force for two magnets in line, with unlike poles facing one another:
APPEARS IN
RELATED QUESTIONS
Which of the following statements is incorrect regarding magnetic field lines?
(a) The direction of magnetic field at a point is taken to be the direction in which the north pole a magnetic compass needle points.
(b) Magnetic field lines are closed curves.
(c) If magnetic field lines are parallel and equidistant, they represent zero field strength.
(d) Relative strength of magnetic field is shown by the degree of closeness of the field lines.
A thick wire is hanging form a wooden table. An anticlockwise magnetic field is to be produced around the wire by passing current through this wire by using a battery. Which terminal of the battery should be connected to the:
(a) top end of wire?
(b) bottom end of wire?
Give reason for your choice.
Explain the following :
Several soft iron pins can cling, one below the other, from the pole of a magnet.
In following figure, draw at least two magnetic field lines between the two magnets.
(a)
Select the correct option:
A bar magnet is rubbed on a bar of steel along its length 20 times. The bar of steel gets magnetised due to the process of:
The magnetic field is the strongest at ____________.
If the key in the arrangement is taken out (the circuit is made open) and magnetic field lines are drawn over the horizontal plane ABCD, the lines are
Magnetic lines of force never ______ each other.
The magnetic field lines are stronger near the ______ and it diminishes as you go away from it.
Name the poles P, Q, Rand S of the magnets in the following figures 'a' and 'b':
 |
 |
| Figure 'a' | Figure 'b' |
