Question

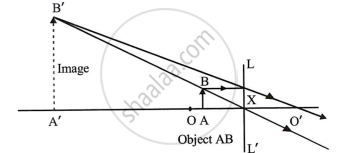

Study the diagram given below.
- Name the lens LL’.
- What are the points O and O’ called?
- Complete the diagram to form the image of the object AB.
- State the three characteristics of the image.
- Name a device in which this action of lens is used.
Solution
- LL' lens is a convex lens.
- O and O' are known as first and second focal points respectively.
- Three characteristics of image are
- Image is virtual
- Erect
- Magnified
- Such action of lens is used in a magnifying glass or a simple microscope.
