प्रश्न
In triangle ABC, ∠ABC = 90°, AB = 6 cm, BC = 7.2 cm and BD is perpendicular to side AC. Draw circumcircle of triangle BDC and then state the length of the radius of this circumcircle drawn.
उत्तर

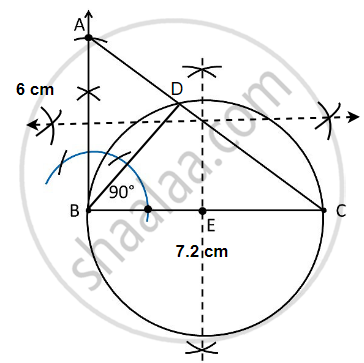

Steps for construction :
- Draw BC = 7.2 cm.
- Draw an angle ABC = 90° using compass.
- Draw BD perpendicular to AC using a compass.
- Join BD.
- Draw perpendicular bisectors of BD and BC which intersect at I, where I is the circumcentre of a circle.
- Draw circumcircle using circumcentre I. we get the radius of a circle is 3.6 cm.
