Question
Distinguish between diamagnetic and paramagnetic substances
Solution
| No | Diamagnetic substance | Paramagnetic substance |
| 1 | In an external magnetic field, a substance gets weakly magnetised in the direction opposite to that of the field. | In an external magnetic field, a paramagnetic substance gets weakly magnetised in the same direction as that of the field. |
| 2 | When placed in a non-uniform magnetic field, it tends to move from the stronger to the weaker part of the field. | When placed in a non-uniform magnetic field, it tends to move from the weaker to the stronger part of the field. |
| 3 | It is weakly repelled by a magnet. | It is weakly attracted by a magnet |
| 4 | Magnetic moment of every atom of a diamagnetic substance is zero. | Every atom of a paramagnetic substance is a magnetic dipole having a certain resultant magnetic moment. |
| 5 | When a rod of diamagnetic substance is suspended in a uniform magnetic field, it comes to rest with its length perpendicular to the direction of the field. | When a rod of paramagnetic substance is suspended in a uniform magnetic field, it comes to rest with its length parallel to the direction of the field. |
| 6 | There is no effect of temperature on diamagnetic substance. | There is effect of temperature on paramagnetic substance. |
RELATED QUESTIONS
An iron rod of the area of cross-section 0.1m2 is subjected to a magnetizing field of 1000 A/m. Calculate the magnetic permeability of the iron rod. [Magnetic susceptibility of iron = 59.9, magnetic permeability of vacuum = 4π x 10-7 S. I. unit]
The susceptibility of magnesium at 200 K is 1.8 x 10-5. At what temperature will the susceptibility decrease by 6 x 10-6?
Out of the two magnetic materials, 'A' has relative permeability slightly greater than unity while 'B' has less than unity. Identify the nature of the materials 'A' and 'B'. Will their susceptibilities be positive or negative?
A meter gauge train is heading north with speed 54 km/hr in earth's magnetic field 3 x 10-4T. The e.m.f. induced across the axle joining the wheels is ..........
(a) 0.45 mV
(b) 4.5 mV
(c) 45 mV
(d) 450 m V
Explain Curie’s law for a paramagnetic substance.
Which of the following substances are diamagnetic?
Bi, Al, Na, Cu, Ca and Ni
Which of the following substances are para-magnetic?
Bi, Al, Cu, Ca, Pb, Ni
The susceptibility of a magnetic material is − 2.6 × 10−5. Identify the type of magnetic material and state its two properties.
The relative magnetic permeability of a magnetic material is 800. Identify the nature of magnetic material and state its two properties.
The magnetic susceptibility of platinum is 0.0001. It's relative permeability is:
Two substances A and B have their relative permeability slightly greater and slightly less than 1 respectively. What do you conclude about A and B as far as their magnetic materials are concerned?
Identify the following magnetic materials :
Which of the following statements is correct for diamagnetic materials?
What happens to a ferromagnetic material when its temperature increases above curie temperature?
A domain in a ferromagnetic substance is in the form of a cube of side 1 µm. If it contains 8 × 1010 atoms and each atomic dipole has a dipole moment of 9 × 10-24 Am2 then the magnetisation of the domain is ______.
For a paramagnetic substance, the magnetic susceptibility is ______.
The magnetic susceptibility of a paramagnetic material at - 73 °C is 0.0075. Its value at -173 °C will be ______.
Magnetic material can be easily magnetized if magnetic susceptibility is ______.
A sphere of gold when brought towards a powerful magnet experiences ____________.
A small quantity of paramagnetic liquid is taken in a watch - glass and kept on two dissimilar magnetic poles. The liquid ____________.
Why does a paramagnetic sample display greater magnetisation (for the same magnetising field) when cooled?
Why is diamagnetism, in contrast, almost independent of temperature?
If a toroid uses bismuth for its core, will the field in the core be (slightly) greater or (slightly) less than when the core is empty?
Is the permeability of a ferromagnetic material independent of the magnetic field? If not, is it more for lower or higher fields?
Would the maximum possible magnetisation of a paramagnetic sample be of the same order of magnitude as the magnetisation of a ferromagnet?
A certain region of space is to be shielded from magnetic fields. Suggest a method.
The given figure represents a material which is ______.
Assertion: The ferromagnetic substance do not obey Curie’s law.
Reason: At Curie point a ferromagnetic substance start behaving as a paramagnetic substance.
Assertion: A paramagnetic sample display greater magnetisation (for the same magnetic field) when cooled.
Reason: The magnetisation does not depend on temperature.
The magnetic susceptibility is negative for ______.
Metals getting magnetised by orientation of atomic magnetic moments in external magnetic field are called ______.

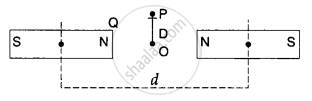

Two identical bar magnets are fixed with their centres at a distance d apart. A stationary charge Q is placed at P in between the gap of the two magnets at a distance D from the centre O as shown in the figure. The force on the charge Q is ______.
When a ferromagnetic material is created above its curie temperature
If a charged particle at rest experience no electromagnetic force
A paramagnetic sample shows a net magnetisation of 8 Am–1 when placed in an external magnetic field of 0.6 T at a temperature of 4 K. When the same sample is placed in an external magnetic field of 0.2 T at a temperature of 16 K, the magnetisation will be ______.
S is the surface of a lump of magnetic material.
- Lines of B are necessarily continuous across S.
- Some lines of B must be discontinuous across S.
- Lines of H are necessarily continuous across S.
- Lines of H cannot all be continuous across S.
A long solenoid has 1000 turns per metre and carries a current of 1 A. It has a soft iron core of µr = 1000. The core is heated beyond the Curie temperature, Tc.
- The H field in the solenoid is (nearly) unchanged but the B field decreases drastically.
- The H and B fields in the solenoid are nearly unchanged.
- The magnetisation in the core reverses direction.
- The magnetisation in the core diminishes by a factor of about 108.
Essential difference between electrostatic shielding by a conducting shell and magnetostatic shielding is due to ______.
- electrostatic field lines can end on charges and conductors have free charges.
- lines of B can also end but conductors cannot end them.
- lines of B cannot end on any material and perfect shielding is not possible.
- shells of high permeability materials can be used to divert lines of B from the interior region.
A permanent magnet in the shape of a thin cylinder of length 10 cm has M = 106 A/m. Calculate the magnetisation current IM.
If the magnetizing field on a ferromagnetic material is increased, its permeability ______.
A uniform magnetic field gets modified as shown in figure when two specimens A and B are placed in it.
 |
 |
| (a) | (b) |
- Identify the specimen A and B.
- How is the magnetic susceptibility of specimen A different from that of specimen B?
The relative magnetic permeability of a substance X is slightly less than unity and that of substance Y is slightly more than unity, then ______.
What is magnetic hysterisis?
Explain ferromagnetism on the basis of the domain theory.
State the dimensions of magnetization.
Magnetic susceptibility of a diamagnetic substance ______.
