प्रश्न
Show the output waveforms (Y) for the following inputs A and B of (i) OR gate (ii) NAND gate ?
उत्तर

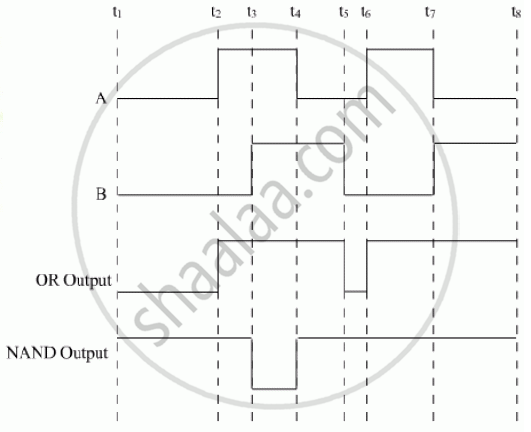

Output waveforms (Y)
