Question
Construct a ΔPQR , in which PQ = 6 cm, QR = 7 cm and PR =- 8 cm. Then, construct another triangle whose sides are`4/5` times the corresponding sides of ΔPQR .
Solution

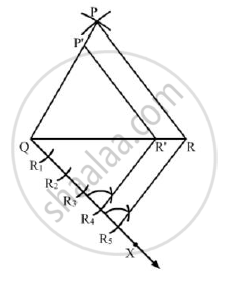

Steps of Construction
Step 1: Draw a line segment QR = 7cm.
Step 2: With Q as center and radius 6 cm, draw an arc.
Step 3: With R as center and radius 8cm, draw an arc cutting the previous arc at P
Step 4: Join PQ and PR. Thus, ΔPQR is the required triangle.
Step 5: Below QR, draw an acute angle ∠RQX.
`Step 6: "Along OX, mark five points "R_1 ,R_2 ,R_3 ,R_4 and R_5 "such that" QR_1 = R_1 R_2 = R_2 R_3 = R_3 R_4 = R_4 R_5` .
Step 7: Join 5RR .
Step 8: From R4 , draw R4 R' || RR5 meeting QR at R’.
Step 9: From R’, draw P’R’ || PRmeeting PQ in P’.
Here, ΔP'QR' is the required triangle, each of whose sides are`4/5` times the corresponding sides of ΔPQR.
