Question

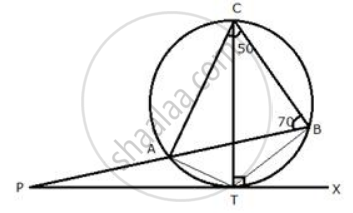

PT is a tangent to the circle at T. If ∠ ABC = 70° and ∠ ACB = 50° ; calculate : ∠ APT
Solution
Join AT and BT.
∠ BTX = ∠ TCB = 30° (Angles in the same segment)
∴ ∠ PTB = 180° - 30° = 150°
Now in Δ PTB ,
∠APT + ∠ PTB + ∠ ABT = 180°
⇒ ∠APT + 150° + 20° = 180°
⇒ ∠APT = 180° - 170° = 10°
