प्रश्न
In the given figure, BC is a tangent to the circle with centre O. OE bisects AP. Prove that ΔAEO ∼ Δ ABC.
उत्तर

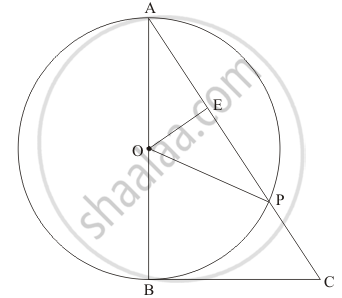

The figure given in the question is below
Let us first take up Δ AOP.
We have,
OA = OP (Since they are the radii of the same circle)
Therefore, Δ AOP. is an isosceles triangle. From the property of isosceles triangle, we know that, when a median drawn to the unequal side of the triangle will be perpendicular to the unequal side. Therefore,
`∠ OEA=90^o`
Now let us take up Δ AOE and Δ ABC..
We know that the radius of the circle will always be perpendicular to the tangent at the point of contact. In this problem, OB is the radius and BC is the tangent and B is the point of contact. Therefore,
`∠ ABC=90^o`
Also, from the property of isosceles triangle we have found that
`∠ OEA = 90^o`
Therefore,
`∠ ABC`= `∠ OEA`
`∠ A` is the common angle to both the triangles.
Therefore, from AA postulate of similar triangles,
`ΔAOE` ~ `ΔABC`
Thus we have proved.
