Question
Solve the following L.P.P. by graphical method :
Minimize : Z = 7x + y subject to 5x + y ≥ 5, x + y ≥ 3, x ≥ 0, y ≥ 0.
Solution
To draw the feasible region, construct table as follows:
| Inequality | 5x + y ≥ 5 | x + y ≥ 3 |
| Corresponding equation (of line) | 5x + y = 5 | x + y = 3 |
| Intersection of line with X-axis | (1, 0) | (3, 0) |
| Intersection of line with Y-axis | (0, 5) | (0, 3) |
| Region | Non-origin side | Non-origin side |

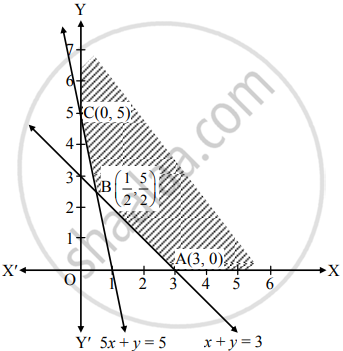

Shaded portion XABCY is the feasible region,
whose vertices are A(3, 0), B and C (0, 5).
B is the point of intersection of the lines x + y = 3 and 5x + y = 5
Solving the above equations, we get
x = `(1)/(2), y = (5)/(2)`
∴ B ≡ `(1/2, 5/2)`
Here, the objective function is Z = 7x + y
Z at A(3, 0) = 7(3) + 0 = 21
Z at B`(1/2, 5/2) = 7(1/2) + (5)/(2)`
= `(7)/(2) + (5)/(2)` = 6
Z at C (0, 5) = 7(0) + 5 = 5
∴ Z has minimum value 5 at C(0, 5).
∴ Z is minimum, when x = 0 and y = 5.
