A Pulley

Advertisements

Topics

  • Introduction
  • Experiment

Introduction:

A pulley is a simple machine that consists of a wheel on an axle or shaft that is designed to support movement and change the direction of force through a taut cable, rope, belt, or chain. The basic idea of a pulley system is to make it easier to lift heavy loads or apply force efficiently.

  • Pulleys function by changing the direction of the force applied to the rope or cable. This allows for more effective use of human or mechanical power.
  • For example, pulling down on a rope can lift an object that is attached to the other end upward.

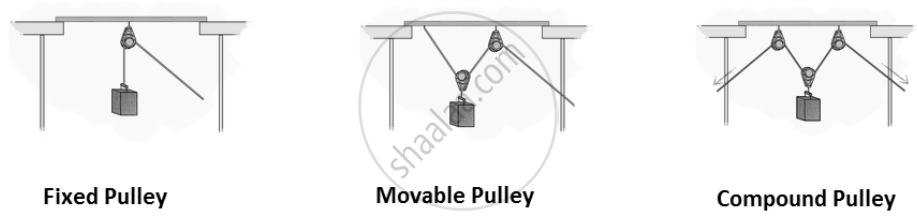

Types of Pulleys:

  1. Fixed Pulley: This type of pulley is mounted in one position and doesn’t move with the load. It changes the direction of the force applied, allowing you to pull down to lift an object up.
  2. Movable Pulley: In this system, the pulley moves with the load. A movable pulley offers a mechanical advantage; it reduces the amount of force needed to lift an object but increases the distance over which the force must be applied.
  3. Compound Pulley: A combination of fixed and movable pulleys that provides a greater mechanical advantage, making it much easier to lift heavier loads with less effort.

Experiment

1. Aim: This experiment aims to demonstrate how a pulley can lift a weight with less effort by changing the direction of the applied force.

2. Requirements: pencil, sticking tape, an empty reel of thread (acts as the pulley), half a meter of thick thread, small weight (such as an eraser), and play-dough.

3. Procedure:

  • Place the pencil horizontally on the table to extend over the edge. Use sticking tape to secure the pencil firmly to the table.
  • Slide the reel of thread over the part of the pencil that juts out, making sure it can rotate freely.
  • Place a lump of play-dough on the tip of the pencil to prevent the reel from sliding off.
  • Tie one end of the thick thread to the weight and place the other end over the reel.
  • Hold the loose end of the thread that does not have the weight and pull it downward.

4. Observation: When the thread is pulled down, the weight on the other end lifts up.

5. Conclusion: The pulley system allows you to exert force in a downward direction to lift a weight upwards, which is generally easier than lifting directly. This experiment shows that a pulley changes the direction of the force applied, making it more convenient to lift the objects.

A pulley in everyday life
