प्रश्न
A body is in translational equilibrium under the action of coplanar forces. If the torque of these forces is zero about a point, is it necessary that it will also be zero about any other point?
उत्तर
Yes , if the torque due to forces in translation equillibrium is zero about a point, it will be zero about other point in the plane.
Let us consider a planner lamina of some mass, acted upon by forces \[\overrightarrow{F_1}, \overrightarrow{F_2}, . . . \overrightarrow{F_i},\] etc.
Let a force \[\overrightarrow{F_i}\] act on a \[i^{th}\] particle and torque due to \[\overrightarrow{F_i}\] be zero at a point Q.
Since the body is in translation equillibrium, we have
\[\Sigma \overrightarrow{F_i} = 0 .............(1)\]
Again, torque about P is zero . Therefore, we have
\[\Sigma\left( \overrightarrow{r_{pi}} \times \overrightarrow{F_i} \right) = 0 ..............(2)\]
Now, torque about point Q will be
\[\Sigma \overrightarrow{r}_{Qi} \times \overrightarrow{F_i} \]
\[ = \Sigma\left( \overrightarrow{r}_{QP} + \overrightarrow{r}_{Pi} \right) \times \overrightarrow{F_i} ............\left[\text{From fig.} \right]\]
\[ = \Sigma\left( \overrightarrow{r}_{QP} \times \vec{F_i} + \overrightarrow{r_{Pi}} \times \overrightarrow{F_i} \right)\]
\[ = \Sigma \overrightarrow{r_{QP}} \times \overrightarrow{F_i} + \Sigma \overrightarrow{r_{Pi}} \times \overrightarrow{F_i} \]
\[ = \overrightarrow{r_{QP}} \times \Sigma \overrightarrow{F_i} + 0 ..........\left[\text{From (2)} \right]\]
\[ = \overrightarrow{r_{QP}} \times 0 .........\left[\text{From (1)} \right]\]
\[ = 0\]
Thus, \[\overrightarrow{F}\] is zero about any other point Q.
APPEARS IN
संबंधित प्रश्न
Find the components along the x, y, z axes of the angular momentum l of a particle, whose position vector is r with components x, y, z and momentum is p with components px, py and 'p_z`. Show that if the particle moves only in the x-y plane the angular momentum has only a z-component.
Two particles, each of mass m and speed v, travel in opposite directions along parallel lines separated by a distance d. Show that the angular momentum vector of the two particle system is the same whatever be the point about which the angular momentum is taken.

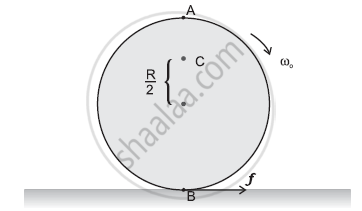

Explain why friction is necessary to make the disc in Figure roll in the direction indicated
(a) Give the direction of frictional force at B, and the sense of frictional torque, before perfect rolling begins.
(b) What is the force of friction after perfect rolling begins?
The torque of the weight of any body about any vertical axis is zero. If it always correct?
The torque of a force \[\overrightarrow F \] about a point is defined as \[\overrightarrow\Gamma = \overrightarrow r \times \overrightarrow F.\] Suppose \[\overrightarrow r, \overrightarrow F\] and \[\overrightarrow \Gamma\] are all nonzero. Is \[r \times \overrightarrow\Gamma || \overrightarrow F\] always true? Is it ever true?
If the resultant torque of all the forces acting on a body is zero about a point, is it necessary that it will be zero about any other point?
A ladder is resting with one end on a vertical wall and the other end on a horizontal floor. If it more likely to slip when a man stands near the bottom or near the top?
Equal torques act on the disc A and B of the previous problem, initially both being at rest. At a later instant, the linear speeds of a point on the rim of A and another point on the rim of B are \[\nu_A\] and \[\nu_B\] respectively. We have
The density of a rod gradually decreases from one end to the other. It is pivoted at an end so that it can move about a vertical axis though the pivot. A horizontal force F is applied on the free end in a direction perpendicular to the rod. The quantities, that do not depend on which end of the rod is pivoted, are ________________ .
A simple pendulum of length l is pulled aside to make an angle θ with the vertical. Find the magnitude of the torque of the weight ω of the bob about the point of suspension. When is the torque zero?
A flywheel of moment of inertia 5⋅0 kg-m2 is rotated at a speed of 60 rad/s. Because of the friction at the axle it comes to rest in 5⋅0 minutes. Find (a) the average torque of the friction (b) the total work done by the friction and (c) the angular momentum of the wheel 1 minute before it stops rotating.
A particle is moving with a constant velocity along a line parallel to the positive X-axis. The magnitude of its angular momentum with respect to the origin is, ______
A Merry-go-round, made of a ring-like platform of radius R and mass M, is revolving with angular speed ω. A person of mass M is standing on it. At one instant, the person jumps off the round, radially away from the centre of the round (as seen from the round). The speed of the round afterwards is ______.
The net external torque on a system of particles about an axis is zero. Which of the following are compatible with it?
- The forces may be acting radially from a point on the axis.
- The forces may be acting on the axis of rotation.
- The forces may be acting parallel to the axis of rotation.
- The torque caused by some forces may be equal and opposite to that caused by other forces.
A uniform sphere of mass m and radius R is placed on a rough horizontal surface (Figure). The sphere is struck horizontally at a height h from the floor. Match the following:
| Column I | Column II | |
| (a) h = R/2 | (i) | Sphere rolls without slipping with a constant velocity and no loss of energy. |
| (b) h = R | (ii) | Sphere spins clockwise, loses energy by friction. |
| (c) h = 3R/2 | (iii) | Sphere spins anti-clockwise, loses energy by friction. |
| (d) h = 7R/5 | (iv) | Sphere has only a translational motion, looses energy by friction. |
Angular momentum of a single particle moving with constant speed along the circular path ______.
The magnitude of the torque on a particle of mass 1 kg is 2.5 Nm about the origin. If the force acting on it is 1 N, and the distance of the particle from the origin is 5 m, the angle between the force and the position vector is (in radians) ______.
