Question
Construct an equilateral ∆ABC with side 5 cm. ∆ABC ~ ∆LMN, ratio the corresponding sides of triangle is 6 : 7, then construct ΔLMN and ΔABC
Solution

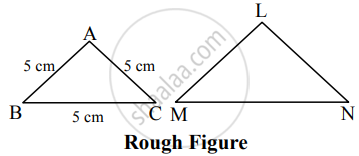

Analysis: ∆ABC ∼ ∆LMN
∴ `"AB"/"LM" = "BC"/"MN" = "AC"/"LN"` ......[Corresponding sides of similar triangles]
∴ `5/"LM" = 5/"MN" = 5/"LN" = 6/7` .....[Given]
∴ `5/"LM" = 6/7`
∴ LM = `(5 xx 7)/6`
∴ LM = 5.8 cm (approx)
∴ LM = MN = LN = 5.8 cm (approx) .....[Equilateral triangle]

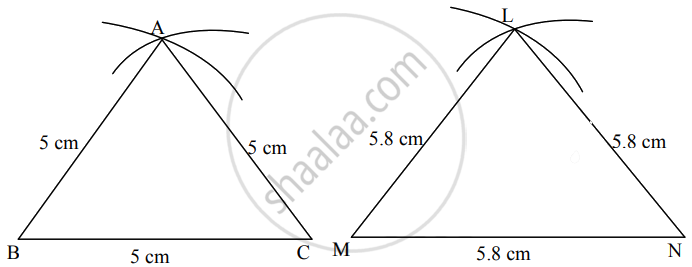

Steps of Construction:
| ∆ABC | ∆PQR | |
| i. | Draw seg BC of 5 cm | Draw seg MN of 5.8 cm |
| ii. | Draw two arcs at 5 cm from point B and point C respectively. | Draw two arcs at 5.8 cm from point M and point N respectively. |
| iii. | Name the point of intersection of two arcs as A. | Name the point of intersection of two arcs as L. |
| iv. | Join seg AB and seg AC. | Join seg LM and seg LN. |
