Selina solutions for Concise Mathematics [English] Class 9 ICSE chapter 14 - Rectilinear Figures [Quadrilaterals: Parallelogram, Rectangle, Rhombus, Square and Trapezium] [Latest edition]

The sum of the interior angles of a polygon is four times the sum of its exterior angles.
Find the number of sides in the polygon.

The angles of a pentagon are in the ratio 4: 8: 6: 4: 5.
Find each angle of the pentagon.

One angle of a six-sided polygon is 140^o and the other angles are equal.
Find the measure of each equal angle.

In a polygon, there are 5 right angles and the remaining angles are equal to 195^o each. Find the number of sides in the polygon.

Three angles of a seven-sided polygon are 132^o each and the remaining four angles are equal. Find the value of each equal angle.

Two angles of an eight-sided polygon are 142^o and 176^o. If the remaining angles are equal to each other; find the magnitude of each of the equal angles.

In a pentagon ABCDE, AB is parallel to DC and ∠A: ∠E : ∠D = 3: 4: 5. Find angle E.

AB, BC, and CD are the three consecutive sides of a regular polygon. If BAC = 15°;

Find:

1. Each interior angle of the polygon.
2. Each exterior angle of the polygon.
3. The number of sides of the polygon.

The ratio between an exterior angle and an interior angle of a regular polygon is 2 : 3. Find the number of sides in the polygon.

The difference between an exterior angle of (n - 1) sided regular polygon and an exterior angle of (n + 2) sided regular polygon is 6° find the value of n.

Two alternate sides of a regular polygon, when produced, meet at the right angle.
Find:
(i)The value of each exterior angle of the polygon;
(ii) The number of sides in the polygon.

State, 'true' or 'false'
The diagonals of a rectangle bisect each other.

State, 'true' or 'false'
The diagonals of a quadrilateral bisect each other.

State, 'true' or 'false'
The diagonals of a parallelogram bisect each other at right angle.

State, 'true' or 'false'
Each diagonal of a rhombus bisects it.

State, 'true' or 'false'
The quadrilateral, whose four sides are equal, is a square.

State, 'true' or 'false'
Every rhombus is a parallelogram.

State, 'true' or 'false'
Every parallelogram is a rhombus.

State, 'true' or 'false'
 Diagonals of a rhombus are equal.

State, 'true' or 'false'
If two adjacent sides of a parallelogram are equal, it is a rhombus.

State, 'true' or 'false'
 If the diagonals of a quadrilateral bisect each other at right angle, the quadrilateral is a square.

In the figure, given below, AM bisects angle A and DM bisects angle D of parallelogram ABCD. Prove that: ∠AMD = 90°^.

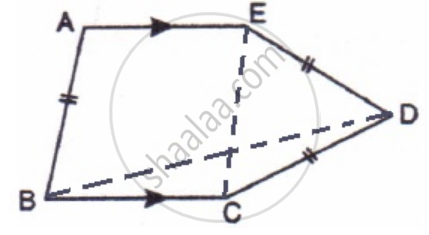

In the following figure, AE and BC are equal and parallel and the three sides AB, CD, and DE are equal to one another. If angle A is 102^o. Find angles AEC and BCD.

In a square ABCD, diagonals meet at O. P is a point on BC such that OB = BP.

Show that:

1. ∠POC = `[ 22 ( 1°)/( 2 ) ]`
2. ∠BDC = 2 ∠POC
3. ∠BOP = 3 ∠CPO

The given figure shows a square ABCD and an equilateral triangle ABP.

Calculate: (i) ∠AOB
                (ii) ∠BPC
                (iii) ∠PCD
                (iv) Reflex ∠APC

In the given figure ABCD is a rhombus with angle A = 67°

If DEC is an equilateral triangle, calculate:

1. ∠CBE
2. ∠DBE

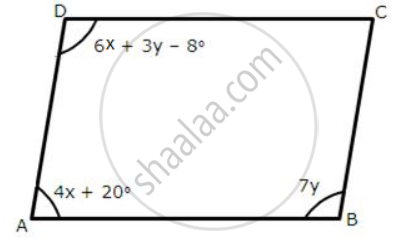

In the following figures, ABCD is a parallelogram.

find the values of x and y.

In the following figures, ABCD is a parallelogram.

Find the values of x and y.

The angles of a quadrilateral are in the ratio 3: 4: 5: 6. Show that the quadrilateral is a trapezium.

In a parallelogram ABCD, AB = 20 cm and AD = 12 cm. The bisector of angle A meets DC at E and BC produced at F.

Find the length of CF.

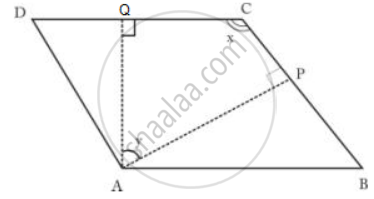

In parallelogram ABCD, AP and AQ are perpendiculars from the vertex of obtuse angle A as shown.
If  ∠x: ∠y = 2: 1.
find angles of the parallelogram.

E is the mid-point of side AB and F is the mid-point of side DC of parallelogram ABCD. Prove that AEFD is a parallelogram.

The diagonal BD of a parallelogram ABCD bisects angles B and D. Prove that ABCD is a rhombus.

The alongside figure shows a parallelogram ABCD in which AE = EF = FC.

Prove that:

1. DE is parallel to FB
2. DE = FB
3. DEBF is a parallelogram.

In the alongside diagram, ABCD is a parallelogram in which AP bisects angle A and BQ bisects angle B.

Prove that:

1. AQ = BP
2. PQ = CD
3. ABPQ is a parallelogram.

In the given figure, ABCD is a parallelogram.

Prove that: AB = 2 BC.

Prove that the bisectors of opposite angles of a parallelogram are parallel.

Prove that the bisectors of interior angles of a parallelogram form a rectangle.

Prove that the bisectors of the interior angles of a rectangle form a square.

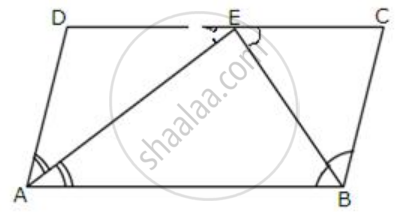

In parallelogram ABCD, the bisector of angle A meets DC at P and AB = 2 AD.
Prove that:
(i) BP bisects angle B.
(ii) Angle APB = 90^o.

Points M and N are taken on the diagonal AC of a parallelogram ABCD such that AM = CN. Prove that BMDN is a parallelogram.

In the following figure, ABCD is a parallelogram.

Prove that:
(i) AP bisects angle A.
(ii) BP bisects angle B
(iii) ∠DAP + ∠BCP = ∠APB

ABCD is a square. A is joined to a point P on BC and D is joined to a point Q on AB. If AP = DQ;

prove that AP and DQ are perpendicular to each other.

In a quadrilateral ABCD, AB = AD and CB = CD.

Prove that:

1. AC bisects angle BAD.
2. AC is the perpendicular bisector of BD.

The following figure shows a trapezium ABCD in which AB is parallel to DC and AD = BC.

Prove that:
(i) ∠DAB = ∠CBA
(ii) ∠ADC = ∠BCD
(iii) AC = BD
(iv) OA = OB and OC = OD.

In the given figure, AP is the bisector of ∠A and CQ is the bisector of ∠C of parallelogram ABCD.

Prove that APCQ is a parallelogram.

In case of a parallelogram
prove that:
(i) The bisectors of any two adjacent angles intersect at 90^o.
(ii) The bisectors of the opposite angles are parallel to each other.

The diagonals of a rectangle intersect each other at right angles. Prove that the rectangle is a square.

In the following figure, ABCD and PQRS are two parallelograms such that ∠D = 120° and ∠Q = 70°.
Find the value of x.

In the following figure, ABCD is a rhombus and DCFE is a square.

If ∠ABC =56°, find:
(i) ∠DAE
(ii) ∠FEA
(iii) ∠EAC
(iv) ∠AEC
